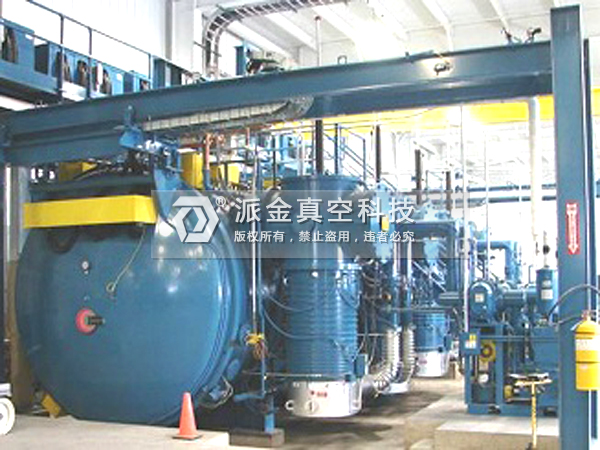

        单室铝钎焊真空炉

产品名称:单室铝钎焊真空炉

Name: Vacuum Furnace for Single Chamber Aluminum Brazing

用途 /Use

主要用于汽车散热器,空调蒸发器,冷凝器,雷达网络天线等铝合金制品的真空钎焊及热处理加工。

It is mainly used for vacuum brazing and heat treatment of aluminum alloy products such as automobile radiator, air conditioning evaporator, condenser, radar network antenna and so on.
特点 /characteristic

方形加热室设计,金属反射屏,360度辐射加热

Square heating chamber design, metal reflector, 360 degree radiation heating

多区独立控温╱对流加热/真空分压

Multi-zone independent temperature control convective heating / vacuum partial pressure

/外循环冷却方式

Internal and external circulation cooling mode

抽气口增加真空冷凝扑集器

Adding vacuum condensation and Collector at exhaust Port

高真空机组恢复时间快

Fast recovery time of High vacuum Unit

精确工艺控制获得始终如一的产品重现性

Accurate process control achieves consistent product reproducibility



配置选择/Configure select:



 炉型结构:

Furnace structure:

单室卧式 //Single,horizontal room

单室立式 /single, vertical chamber

可设计流水线组合,多台钎焊炉共用一套真空系统,炉外运输系统

Can design assembly line combination, multiple brazing furnaces share a set of vacuum system, out-of-furnace transportation system

 炉门开启方式: Furnace door opening mode

回转式

rotary

平开式

Flat type



 炉胆 /Flue

镍带加热元件与金属隔热屏合成结构

Synthesis structure of Ni Strip heating element and Metal Insulation screen

钼加热元件与金属隔热屏合成结构

Composite structure of Molybdate heating element and Metal Insulation screen



真空泵组和真空计;

Vacuum pump set and vacuum gauge



进口

Imported

高品质国产

High quality

Made in China



真空度:

Vacuum degree

高真空

High vacuum





PLC:



 西门子

Siemens

欧姆龙

OMRON

三菱

Mitsubishi

温控仪表

Thermostat meter

欧陆

EUROTHERM

导电

Electric conduction



热电偶 :

Thermocouple

N分度号

N score number

记录仪 :

Grapher :



 有纸记录仪

Paper recorder



无纸记录仪

Paperless recorder





 人机界面:

Human-computer interface

模拟屏

Analog screen



计算机触摸屏

Computer touch screen



电器元件

Electrical component

高品质国产

High quality domestic

施耐德

Schneider

西门子

Siemens



产品 规格/ Specifications

注:特殊规格要求可根据客户要求定制

Note: Special specification requirements can be customized according to customer requirements

以下参数可根据工艺要求调整,不作为验收依据,具体以技术方案和协议为准

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement



 参数/型号

Parameter/ Model

PJ-LQ5510

PJ-LQ9920

PJ-LQ1225

PJ-LQ1530

PJ-LQ2250

 有效热区W×H×L

Effective hot zone

500×500×1000

900×900×2000

1200×1200×2500

1500×1500×3000

2000×2000×5000

 装载重量 KG

Load weight

500

1200

2000

3500

4800

 最高温度 (℃)

Max.temprature

700

700

700

700

700

 炉温均匀性 (℃)

Furnace temperature uniformity

±3

±3

±3

±3

±3

 真空度 Pa

Vacuum degree

6.7 E -3

6.7 E -3

6.7 E -3

6.7 E -3

6.7 E -3

 压升率 Pa

Pressure rise rate

≤0.5

≤0.5

≤0.5

≤0.5

≤0.5

 适用介质

Applicable medium

 氮气/氩气

Nitrogen / argon

氮气/氩气

Nitrogen / argon

 氮气/氩气

Nitrogen / argon

 氮气/氩气

Nitrogen / argon

 氮气/氩气

Nitrogen / argon

气冷压强 bar

Air cooling pressure

≤2

≤2

≤2

≤2

≤2

 冷却工艺

Cooling process

     真空/微压/正压

Vacuum  / Micro pressure / Positive pressure

 冷却速度 min

Cooling velocity

 可控

Controlled
