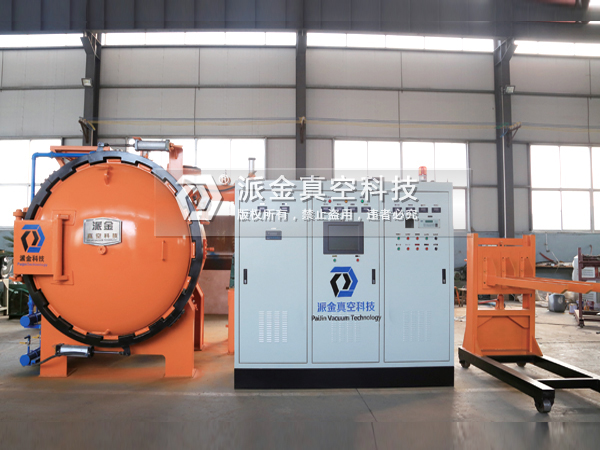

单室卧式高压高流率气淬真空炉

适用于模具钢、高速钢、不锈钢等材料的淬火处理;不锈钢、钛及钛合金等材料的固溶处理;多种磁性材料的退火处理及回火处理;也可用于真空钎焊及真空烧结等

分享商品:

销售电话:15318905266

        单室卧式高压高流率气淬真空炉

产品名称:单室卧式高压高流率气淬真空炉

Name : Single chamber horizontal high pressure and high flow rate gas quenching vacuum furnace

规格:见技术参数

Specification: Refer to  technical parameters

用途:适用于模具钢、高速钢、不锈钢等材料的淬火处理;不锈钢、钛及钛合金等材料的固溶处理;多种磁性材料的退火处理及回火处理;也可用于真空钎焊及真空烧结等

Application: It is suitable for quenching treatment of materials such as die steel, high-speed steel, stainless steel, etc.; solution treatment of materials such as stainless steel, titanium and titanium alloy; annealing treatment and tempering treatment of various magnetic materials; and can be used for vacuum gas welding and vacuum sintering.

特点Characteristic

1.采用高效方形换热器, 冷却速度提高80%

Using high efficiency square heat exchanger, the cooling rate is increased by 80%..

2.风嘴沿加热室圆周360度均匀、交错布置,冷却均匀性好

The air nozzle is 360 degrees uniform along the circumference of the heating chamber, staggered, and the cooling uniformity is good..

3.加热元件沿加热室圆周360度均匀布置,温度均匀性高

The heating element is uniformly arranged along the circumference of the heating chamber, and the temperature is high..

4.采用复合硬毡/金属屏为加热室隔热层 ,适用不同工艺环境

The composite felt / metal screen is used as the heat insulation layer of the heating chamber, which is suitable for different process environments.

5.工件变形小,生产效率高,使用成本低

The workpiece has the advantages of small deformation, high production efficiency and low cost of use..

6.编程工艺灵活输入,机械动作稳定可靠,故障自动报警/显示

Flexible input of programming process, stable and reliable mechanical action, automatic alarm/ display of fault.

7.气淬风机变频驱动,对流加热功能可选、九点测温可选、分级及等温淬火、

The gas quenching fan is driven by frequency conversion, the convection heating function is optional, the nine-point temperature measurement is optional, the grading and the isothermal quenching are carried out,.

8.全智能化工业计算机控制系统并有一套手动操作系统

Fully intelligent chemical industry computer control system and a manual operating system

9.操作简洁、编程工艺灵活输入、机械动作稳定可靠

Simple operation, flexible input of programming process, stable and reliable mechanical action. .

10.手动/半自动/自动 故障自动报警/显示

Manual / semi-automatic / automatic fault automatic alarm / display.



配置选择/Configure select:



 炉门开启方式: Furnace door opening mode

回转式

Rotary

平开式

Flat type

垂直升降式

Vertical lifting type

 气淬方式:

Gas quenching method



圆周360度喷嘴射流冷却 Circular 360 degree nozzle jet cooling

炉体外置换热器循环冷却 Circulating cooling of external heat exchanger of furnace body

炉体内置换热器循环冷却 Circulating cooling of displacement heater in furnace body

炉胆/Flue

    石墨加热元件与石墨毡复合屏合成结构;

Synthesis structure of Graphite heating element and Graphite felt Composite screen

    钼加热元件与金属隔热屏合成结构;

The composite structure of Mo heating element and metal thermal insulation screen;

真空泵组和真空计;

Vacuum pump set and vacuum gauge



 进口

Imported

 高品质国产

High quality

Made in China



 真空度:

Vacuum degree

 高真空

High vacuum

 中真空

Medium vacuum



PLC:



 西门子

Siemens

 欧姆龙

OMRON

 三菱

Mitsubishi

 温控仪表

Thermostat meter

欧陆

EUROTHERM

导电

Electric conduction



 热电偶 :

Thermocouple

 S型分度号

S-type dividing number





  记录仪 :

Grapher :



  有纸记录仪

Paper recorder



 无纸记录仪

Paperless recorder





 人机界面:

Human-computer interface

 模拟屏

Analog screen



 计算机触摸屏

Computer touch screen



 电器元件

Electrical component

  高品质国产

High quality

Made in China

  施耐德

Schneider

  西门子

Siemens



产品 规格/ Specifications



注:特殊规格要求可根据客户要求定制

Note: Special specification requirements can be customized according to customer requirements

以下参数可根据工艺要求调整,不作为验收依据,具体以技术方案和协议为准

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement.



 参数/型号

Parameter/ Model

PJ-Q557

PJ-Q669

PJ-Q7711

PJ-Q8812

PJ-Q9916

 有效热区W×H×L

Effective hot zone

500×500×700

600×600×900

700×700×1100

800×800×1200

900×900×1600

 装载重量 KG

Load weight

300

500

800

1200

2000

 最高温度 (℃)

Max.temprature

1350

1350

1350

1350

1350

 炉温均匀性 (℃)

Furnace temperature uniformity

±5

±5

±5

±5

±5

 真空度 Pa

Vacuum degree

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

 压升率 Pa

Pressure rise rate

≤0.5

≤0.5

≤0.5

≤0.5

≤0.5

 气淬压力 bar

Gas quenching pressure

6-25

6-25

6-25

6-25

6-25

冷却气体(99.995%)

Cooling gas

N2/Ar/He

N2/Ar/He

N2/Ar/He

N2/Ar/He

N2/Ar/He
