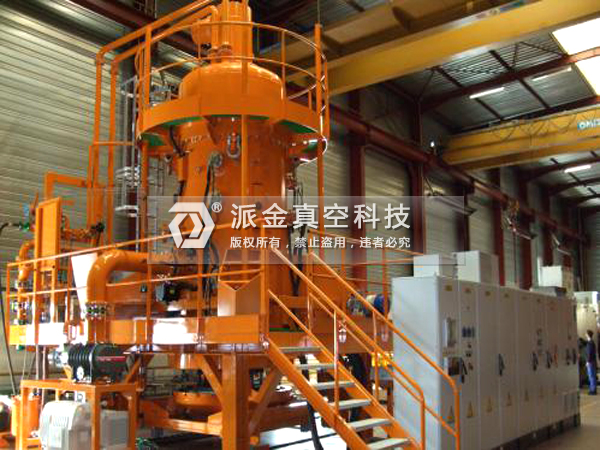

单室立式高压高流率气淬真空炉(节能型)

单室立式高压高流率气淬真空炉(节能型)适用于工模具钢、高速钢、不锈钢等材料的淬火处理;不锈钢、钛及钛合金等材料的固溶处理;多种磁性材料的退火处理及回火处理;也可用于真空钎焊及真空烧结等

分享商品:

销售电话:15318905266

        单室立式高压高流率气淬真空炉(节能型)

产品名称:单室立式高压高流率气淬真空炉(节能型)

Name: Single chamber vertical high pressure high flow rate gas quenching vacuum furnace (energy saving)

PJQ-规格:见技术参数 /PJQ-Specification: Refer to Technical Parameters

用途:适用于工模具钢、高速钢、不锈钢等材料的淬火处理;不锈钢、钛及钛合金等材料的固溶处理;多种磁性材料的退火处理及回火处理;也可用于真空钎焊及真空烧结等.

Application: It is suitable for quenching treatment of die steel, high speed steel, stainless steel and other materials; solid solution treatment of stainless steel, titanium and titanium alloy; annealing treatment and tempering treatment of various magnetic materials; can also be used for vacuum brazing and vacuum sintering, etc.

特点 /characteristic

1.采用高效一体挤出式(鳍片)换热器, 冷却速度提高80%

The cooling rate is increased by 80% by using high efficiency integrated extrusion heat exchanger (finned) heat exchanger.

2.采用节能风嘴沿加热室圆周360度均匀、交错布置,加热过程封闭,节能明显

The energy saving nozzle is uniform along the circle of the heating chamber, staggered and arranged, the heating process is closed, and the energy saving is obvious.

3.加热元件沿加热室圆周360度均匀布置,温度均匀性高

The heating element is evenly arranged along the circle of the heating chamber at 360 degrees, and the temperature uniformity is high.

4.采用复合硬毡/金属屏为加热室隔热层,适用不同工艺环境

The composite felt / metal screen is used as the heat insulation layer of the heating chamber, which is suitable for different process environments.

5.工件变形小,生产效率高,使用成本低

The workpiece has the advantages of small deformation, high production efficiency and low cost of use.

6.编程工艺灵活输入,机械动作稳定可靠,故障自动报警/显示

Flexible input of programming process, stable and reliable mechanical action, automatic alarm / display of fault

7.气淬风机变频驱动,对流加热功能可选、九点测温可选、分级/等温淬火

Frequency conversion drive of gas quenching fan, optional convective heating function, optional temperature measurement at nine points, grading / Isothermal quenching.

8. 采用液压升降机构,动作稳定性好

The hydraulic lifting mechanism is adopted, and the operation stability is good.

9. 全智能化工业计算机控制系统并有一套手动操作系统

Fully intelligent chemical industry computer control system and a manual operating system

10.操作简洁、编程工艺灵活输入、机械动作稳定可靠

Simple operation, flexible input of programming process, stable and reliable mechanical action

11.手动/半自动/自动 故障自动报警/显示

Manual / semi-automatic / automatic fault automatic alarm / display



配置选择/Configure select:

 低装料形式:

Low charge form:

升降炉门可横向移动

The lifting furnace door can be moved horizontally

升降炉门横向固定

Horizontal fixing of lifting furnace door



 垂直升降:

Vertical lifting:

 液压升降

Hydraulic lift

 丝杆升降

Screw rod lifting



 气淬方式:

Gas quenching method



圆周360度喷嘴射流冷却 Circular 360 degree nozzle jet cooling

炉体外置换热器循环冷却 Circulating cooling of external heat exchanger of furnace body

炉体内置换热器循环冷却 Circulating cooling of displacement heater in furnace body

 炉胆 /Flue

    石墨加热元件与石墨毡复合屏合成结构;

Synthesis structure of Graphite heating element and Graphite felt Composite screen

    钼加热元件与金属隔热屏合成结构;

The composite structure of Mo heating element and metal thermal insulation screen;

真空泵组和真空计;

Vacuum pump set and vacuum gauge



进口

Imported

高品质国产

High quality

Made in China



真空度:

Vacuum degree

高真空

High vacuum

中真空

Medium vacuum



PLC:



西门子

Siemens

欧姆龙

OMRON

三菱

Mitsubishi

温控仪表

Thermostat meter

欧陆

EUROTHERM

导电

Electric conduction



热电偶 :

Thermocouple

S型分度号

S-type dividing number





记录仪 :

grapher :



有纸记录仪

Paper recorder



无纸记录仪

Paperless recorder





人机界面:

human-computer interface

模拟屏

Analog screen



计算机触摸屏

Computer touch screen



电器元件

Electrical component

高品质国产

High quality

Made in China

施耐德

Schneider

西门子

Siemens



产品 规格Specifications

注:特殊规格要求可根据客户要求定制

Note: Special specification requirements can be customized according to customer requirements.



以下参数可根据工艺要求调整,不作为验收依据,具体以技术方案和协议为准

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement.



 参数/型号

Parameter/ Model

PJ-LQ68

PJ-LQ810

PJ-LQ1012

PJ-LQ1215

PJ-LQ1518

有效热区D×H(mm

Effective hot zone

600×800

800×1000

1000×1200

1200×1500

1500×1800

 装载重量 KG

Load weight

500

800

1000

1200

2000

 最高温度 (℃)

Max.temprature

1350

1350

1350

1350

1350

 炉温均匀性 (℃)

Furnace temperature uniformity

±5

±5

±5

±5

±5

 真空度 Pa

Vacuum degree

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

 压升率 Pa

Pressure rise rate

≤0.5

≤0.5

≤0.5

≤0.5

≤0.5

 气淬压力 bar

Gas quenching pressure

6-25

6-25

6-25

6-25

6-25

冷却气体(99.995%)

Cooling gas

N2/Ar/He

N2/Ar/He

N2/Ar/He

N2/Ar/He

N2/Ar/He
