双室油淬加压气冷真空炉

主要用于合金钢、合金结构钢、工模具钢、弹簧钢、轴承钢、不锈钢、精密合金钢等材料的光亮淬火、调质及磁性材料的烧结,光亮退火及真空钎焊。

分享商品:

销售电话:15318905266

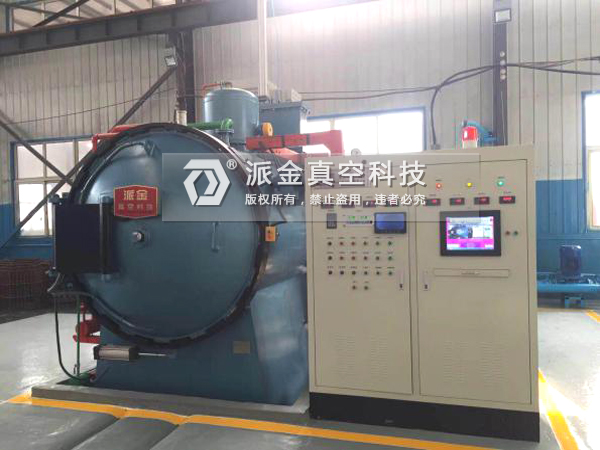

        双室油淬加压气冷真空炉

产品名称:双室油淬加压气冷真空炉

Name: Double chamber oil quenching pressurized gas cooled vacuum furnace

PJY2-规格:见技术参数 /PJY2- specifications: Refer to  technical parameters

用途:主要用于合金钢、合金结构钢、工模具钢、弹簧钢、轴承钢、不锈钢、精密合金钢等材料的光亮淬火、调质及磁性材料的烧结,光亮退火及真空钎焊

Application: It is mainly used for bright quenching, quenching and tempering of alloy steel, alloy structure steel, die steel, spring steel, bearing steel, stainless steel, precision alloy steel, sintering, bright annealing and vacuum brazing of alloy steel, alloy structure steel, die steel, spring steel, bearing steel, stainless steel, precision alloy steel, etc.

特点 /characteristic

1.加热元件沿加热室圆周360度均匀布置,温度均匀性达±5

The heating element is uniformly arranged along the circumference of the heating chamber by 360 degrees, and the temperature uniformity is up to about 5 degrees .

2.加热室和油淬室分开,可连续生产

The heating chamber and the oil quenching chamber are separated and can be produced continuously.

3.油搅拌机构变频调速且带有导流装置,冷却均匀性好、工件变形小

Oil mixing mechanism variable frequency speed regulation with flow guide, good cooling uniformity, small workpiece deformation.

4. 具有恒温淬火/等温淬火/对流加热/真空分压

Constant temperature quenching/ austempering/ convection heating/ vacuum partial pressure

5. 机械动作稳定,承载量重,料车自动运行

The mechanical action is stable, the bearing capacity is heavy, and the material vehicle runs automatically.

6. 全智能化工业计算机控制系统并有一套手动操作系统

Fully intelligent chemical industry computer control system and a manual operating system

7.操作简洁 编程工艺灵活输入 机械动作稳定可靠

The operation is simple and the programming process is flexible and the mechanical action is stable and reliable.

8.手动/半自动/自动 故障自动报警/显示

Manual/ semi-automatic/ automatic fault automatic alarm/ display



配置选择/Configure select:

 炉门:

Furnace door:

回转式

Rotary

平开式

Flat type

垂直升降式

Vertical lifting type

 中间隔热门 Middle septum hot

 机械传动 Mechanical drive

气动 /Pneumatic



真空淬火油流动方式: Vacuum quenching oil flow mode

 浆叶搅拌

Pulp blade stirring

 喷嘴喷射

Nozzle injection

 二者叠加

Superposition of the two

炉胆/Flue

    石墨加热元件与石墨毡复合屏合成结构;

Synthesis structure of Graphite heating element and Graphite felt Composite screen

    钼加热元件与金属隔热屏合成结构;

The composite structure of Mo heating element and metal thermal insulation screen;

    镍铬合金带加热元件与不锈钢屏合成结构;

Synthesis structure of Ni-Cr Alloy Strip heating element and stainless Steel screen



 气冷结构:

Air-cooled structure

 内置换热器

Built-in heat exchanger

 外置换热器

External heat exchanger



真空泵组和真空计;

Vacuum pump set and vacuum gauge



 进口

Imported

 高品质国产

High quality

Made in China



 真空度:

Vacuum degree

 高真空

High vacuum

 中真空

Medium vacuum



PLC:



 西门子

Siemens

 欧姆龙

OMRON

 三菱

Mitsubishi

 温控仪表

Thermostat meter

欧陆

EUROTHERM

导电

Electric conduction



 热电偶 :

Thermocouple

 S型分度号

S-type dividing number





  记录仪 :

Grapher :



  有纸记录仪

Paper recorder



 无纸记录仪

Paperless recorder





 人机界面:

Human-computer interface

 模拟屏

Analog screen



 计算机触摸屏

Computer touch screen



 电器元件

Electrical component

  高品质国产

High quality

Made in China

  施耐德

Schneider

  西门子

Siemens



产品 规格/ Specifications

注:特殊规格要求可根据客户要求定制

Note: Special specification requirements can be customized according to customer requirements

以下参数可根据工艺要求调整,不作为验收依据,具体以技术方案和协议为准

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement



 参数/型号

Parameter/ Model

PJ-Q557

PJ-Q669

PJ-Q7711

PJ-Q8812

PJ-Q9916

 有效热区W×H×L

Effective hot zone

500×500×700

600×600×900

700×700×1100

800×800×1200

900×900×1600

 装载重量 KG

Load weight

300

500

800

1200

2000

 最高温度 (℃)

Max.temprature

1350

1350

1350

1350

1350

 炉温均匀性 (℃)

Furnace temperature uniformity

±5

±5

±5

±5

±5

 真空度 Pa

Vacuum degree

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

4.0 E -1/

6.7 E -3

 压升率 Pa

Pressure rise rate

≤0.5

≤0.5

≤0.5

≤0.5

≤0.5

 移送时间 S

Transfer time

≤10

≤10

≤15

≤25

≤30

  冷却气压 bar

Cooling pressure

2

2

2

2

2

冷却气体(99.995%)

Cooling gas

N2/Ar

N2/Ar

N2/Ar

N2/Ar

N2/Ar
