粉末冶金烧结炉

采用多区加热器布置,炉温均匀性好。采用方形脱脂箱,以应对大量成型剂,对炉内元件无污染。具备柔性抽真空、真空烧结、微正压烧结等功能;采用最新的隔热结构和材料,抗压力强,节能明显。采用上位机操作,PLC集中控制,操作简单,可靠性高。

分享商品:

销售电话:15318905266

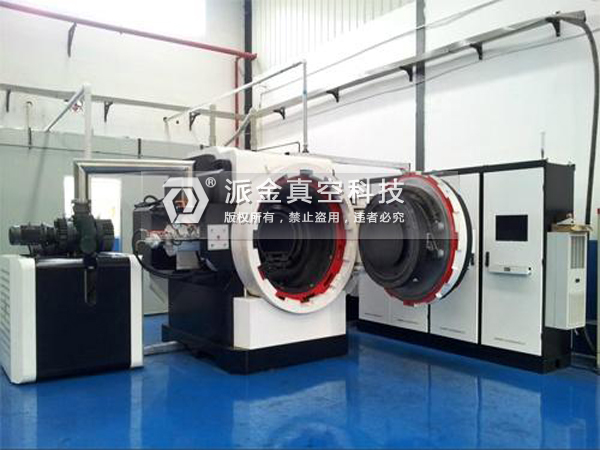

        粉末冶金烧结炉

产品名称:粉末冶金烧结炉

Name: Powder metallurgy sintering furnace



粉末冶金烧结炉技术特征

Technical data of Powder Metallurgy Sintering Furnace

1.采用多区加热器布置,炉温均匀性好

The arrangement of multi-zone heater is adopted, and the furnace temperature is uniform.

2. 采用方形脱脂箱,以应对大量成型剂,对炉内元件无污染

The square defatting box is used to deal with a large number of molding agents and there is no pollution to the components in the furnace.

3. 具备柔性抽真空、真空烧结、微正压烧结等功能

It has the functions of flexible vacuum extraction, vacuum sintering, micro-positive pressure sintering and so on.

4.采用最新的隔热结构和材料,抗压力强,节能明显

The latest thermal insulation structure and materials is used, the pressure resistance is strong, and the energy saving is obvious.

5.采用上位机操作,PLC集中控制,操作简单,可靠性高

It adopts upper computer operation, PLC centralized control, simple operation and high reliability.

6.具有超温超压等故障报警,机械式自动压力保护,自动超压泄压保护,动作互锁等功能设备安全性高。

. It has the functions of overtemperature and overpressure alarm, mechanical automatic pressure protection, automatic overpressure relief protection, action interlock and so on, and the safety of the equipment is high.

7.具备远程操作、远程故障诊断和远程软件升级等功能

Remote operation, remote fault diagnosis and remote software upgrade functions,etc.

配置选择/Configure select:

 炉型结构:

Furnace structure:

单室卧式 //Single ,horizontal room

单室立式 /single, vertical chamber

可设计流水线组合,多台烧结炉共用一套真空系统,炉外运输系统

Can be designed assembly line combination, multiple sintering furnaces share a set of vacuum system, out-of-furnace transportation syst

 炉门开启方式: Furnace door opening mode

回转式

Rotary

平开式

Flat type



真空泵组和真空计;

Vacuum pump set and vacuum gauge



进口

Imported

高品质国产

High quality

Made in China



真空度:

Vacuum degree

高真空

high vacuum

中真空

medium vacuum



PLC:



 西门子

Siemens

欧姆龙

OMRON

三菱

Mitsubishi

温控仪表

Thermostat meter

欧陆

EUROTHERM

导电

Electric conduction



热电偶 :

Thermocouple

C分度号(钨套管/钼套管)

C score number (tungsten casing / Mo casing)

记录仪 :

Grapher :



 有纸记录仪

Paper recorder



无纸记录仪

Paperless recorder





 人机界面:

Human-computer interface

模拟屏

Analog screen



计算机触摸屏

Computer touch screen



电器元件

Electrical component

高品质国产

High quality

Made in China

施耐德

Schneider

西门子

Siemens



产品 规格/  Specifications

注:特殊规格要求可根据客户要求定制

Note: Special specification requirements can be customized according to customer requirements



 以下参数可根据工艺要求调整,不作为验收依据,具体以技术方案和协议为准

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement





 技术参数

Technical parameter

PJSJ-gr-30-1600

PJSJ-gr-60-1600

PJSJ-gr-100-1600

PJSJ-gr-200-1600

PJSJ-gr-450-1600

 有效空间 mm

Useful space

200×200×300

300×300×600

300×300×900

400×400×1200

500×500×1800

 装炉重量 Kg

Charging weight

100KG

200KG

400KG

600KG

1000KG

 抽气速率

Pumping rate

10min内到5Pa

10min内到5Pa

10min内到5Pa

10min内到5Pa

10min内到5Pa

 冷却方式

Cooling-down method

 惰性气体

inert gases

惰性气体

inert gases

惰性气体

inert gases

惰性气体

inert gases

惰性气体

inert gases

 温度均匀性

Temperature homogeneity

±3

±3

±3

±3

±3

 设计压力

Design pressure

                    1 MPa6MPa12MPa(或客制化)

1 MPa,6MPa,12MPa (or customized)

 泄漏率 Leak(age) rate

0.5pa/h

 极限真空度

Final vacuum

4.0*10-1pa

 最高工作温度

Max. working temperature

 1600(或客制化)

1600 (or customized)

 极限真空度

Final vacuum

 4.0*10-1Pa(或客制化)

4.0*10-1Pa (or customization)

 收蜡率

Wax collection rate

                            97.50%(选配)

97.50% (optional)

 允许导入气体

Gas introduction allowed.

 N2H2Ar(可选任意气体)(选配)

N2, H2, ar (optional gas) (optional)

 烧结工艺

Sintering process

 真空、分压烧结、加压烧结

Vacuum, partial pressure sintering, pressure sintering

 脱脂工艺

Degreasing process

                         N2负压、H2大气压(选项)

N2 negative pressure, H2 atmospheric pressure (option)

 冷却工艺

Cooling process

                              真空、强制

Vacuum, forced
